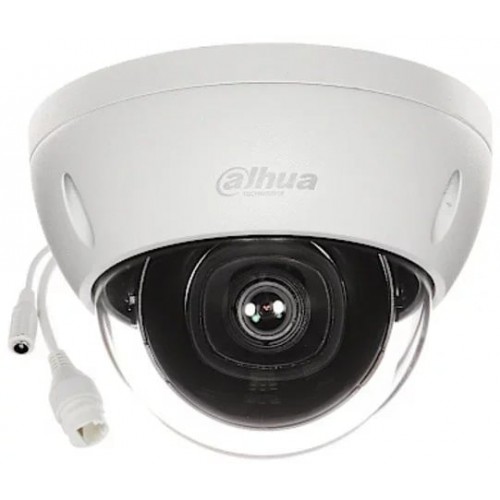

Dahua Dome IPC-HDBW2441E-S-0280B F2.8 (Baltas, 4MP, 95°, IR 30m, IP67, IK10)
Dahua Dome IPC-HDBW2441E-S-0280B F2.8 (Baltas, 4MP, 95°, IR 30m, IP67, IK10)
Kaina:
Be PVM99.55€
Su PVM: 120.45€
- Sandėlyje: Yra
- Prekės kodas: DAHIPCHDBW2441ES0280B
- Sensorius 1/2.9" CMOS
- Maks. rezoliucija 2688 (H) × 1520 (V)
- ROM 128 MB
- RAM 128 MB
- Skenavimo sistema Progressive
- Elektroninis užrakto greitis Auto/Manual 1/3 s–1/100,000 s
- Min. apšvietimas 0.006 lux@F1.6 (Color, 30 IRE)0.0006 lux@F1.6 (B/W, 30 IRE)0 lux (Illuminator on)
- S/N santykis >56 dB
- Apšvietimo atstumas up to 30 m (98.43 ft) (IR); up to 30 m (98.43 ft) (Warm light)
- Apšvietimo valdymas Auto; Manual
- Apšvietimo skaičius 1 (IR LED); 1 (Warm light)
- Pan/Tilt/Rotation Range Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360°
- Lęšio tipas Fixed-focal
- Lęšio montavimas M12
- Židinio nuotolis 2.8 mm; 3.6 mm
- Maks. diafragma F1.6
- FOV 2.8 mm: H: 95°; V: 52°; D: 114°3.6 mm: H: 78°; V: 41°; D: 94°
- Diafragmos valdymas Fixed
- Artimiausias fokusavimas 2.8 mm: 0.9 m (2.95 ft)3.6 mm: 1.6 m (5.25 ft)
- IVS (Perimetro apsauga) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
- Išmanioji paieška Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Vaizdo suspaudimas H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
- Išmanusis kodekas Smart H.265+; Smart H.264+
- Vaizdo kadrų dažnis Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Srauto pajėgumas 2 streams
- Rezoliucija 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
- Bitų greičio kontrolė CBR/VBR
- Vaizdo bitų greitis H.264: 32 kbps–6144 kbpsH.265: 12 kbps–6144 kbps
- Dienos/nakties režimas Auto(ICR)/Color/B/W
- BLC Yes
- HLC Yes
- WDR 120 dB
- Baltos spalvos balansas Auto; natural; street lamp; outdoor; manual; regional custom
- Stiprinimo valdymas Auto;Manual
- Triukšmo mažinimas 3D NR
- Judesių aptikimas OFF/ON (4 areas, rectangular)
- Intereso sritis Yes (4 areas)
- Vaizdo pasukimas 0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)
- Veidrodis Yes
- Privatumo maskavimas 4 areas
- Integruotas mikrofonas Yes
- Garso suspaudimas G.711a; G.711Mu; PCM; G.726
- Pavojaus įvykis No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD
- Tinklo prievadas RJ-45 (10/100 Base-T)
- SDK ir API Yes
- Interneto protokolai IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
- Suderinamumas ONVIF (Profile S/Profile G/Profile T); CGI
- Naudotojas/prievadas 6 (Total bandwidth: 36 M)
- Saugykla FTP; SFTP; Micro SD card (support max. 256 GB)
- Naršyklė IEChromeFirefox
- Valdymo programinė įranga DSS;DMSS
- Mobilioji programa iOS;Android
- Kibernetinis saugumas Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification
- Sertifikatai CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
- Maitinimas 12 VDC/PoE (802.3af)
- Energijos sunaudojimas Basic: 2.1 W (12 VDC); 2.5 W (PoE)Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC); 5.2 W (PoE)
- Darbo sąlygos (temperatūra) –40 °C to +60 °C (–40 °F to +140 °F)
- Darbo sąlygosdrėgmė ≤95%
- Sandėliavimo sąlygos temperatūra –40 °C to +60 °C (–40 °F to +140 °F)
- Apsauga IP67
- Korpuso medžiagas Inner core: Metal;Cover: Metal;Decoration ring: Plastic
- Produkto matmenys 99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
- Svoris be įpakavimo 0.46 kg (1.01 lb)
- Bendras svoris 0.65 kg (1.43 lb)
