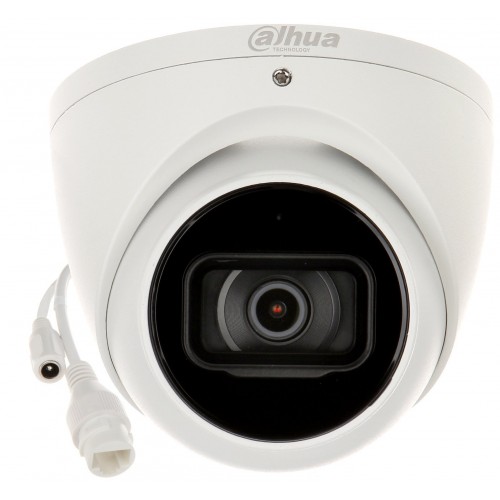

Dahua Dome IPC-HDW3541EM-S-S2 F2.8 (Balta, 5MP, 97°, IR LED 50m, IP67)
Dahua Dome IPC-HDW3541EM-S-S2 F2.8 (Balta, 5MP, 97°, IR LED 50m, IP67)
Kaina:
Be PVM96.82€
Su PVM: 117.15€
- Sandėlyje: Yra
- Prekės kodas: TVKIPIPC-HDW3541TM-AS
- Sensorius 1/2.7" CMOS
- Maks. rezoliucija 2960 (H) × 1668 (V)
- ROM 128 MB
- RAM 512 MB
- Skenavimo sistema Progressive
- Elektroninis užrakto greitis Auto/Manual 1/3 s–1/100,000 s
- Min. apšvietimas 0.005 lux@F1.4 (Color, 30 IRE)0.0005 lux@F1.4 (B/W, 30 IRE)0 lux (Illuminator on)
- S/N santykis >56 dB
- Apšvietimo atstumas Up to 50 m (164.04 ft)
- Apšvietimo valdymas Auto/Manual
- Apšvietimo skaičius 2 (IR LED)
- Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
- Lęšio tipas Fixed-focal
- Lęšio montavimas M12
- Židinio nuotolis 2.8 mm; 3.6 mm; 6 mm
- Maks. diafragma F1.4
- FOV 2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129°3.6 mm: Horizontal: 80°; Vertical: 57°; Diagonal: 107°6 mm: Horizontal: 50°; Vertical: 37°; Diagonal: 64°
- Diafragmos valdymas Fixed
- Artimiausias fokusavimas 2.8 mm: 1.1 m (3.61 ft)3.6 mm: 1.7 m (5.58 ft)6 mm: 3.3 m (10.83 ft)
- IVS (Perimetro apsauga) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
- AI SSA Yes
- Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
- Išmanioji paieška Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Vaizdo suspaudimas H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Išmanusis kodekas Smart H.265+Smart H.264+
- AI kodavimas AI H.265AI H.264
- Vaizdo kadrų dažnis Main stream: 2880 × 1620 @ (1–20) fps /2960 × 1668 @ (1–20) fps /2688 × 1520@ (1–25/30 fps)Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)Sub stream 2: 1920 × 1080 @ (1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
- Srauto pajėgumas 3 streams
- Rezoliucija 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
- Bitų greičio kontrolė CBR/VBR
- Vaizdo bitų greitis H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps
- Dienos/nakties režimas Auto (ICR)/Color/B/W
- BLC Yes
- HLC Yes
- WDR 120 dB
- Scene Self-adaptation (SSA) Yes
- Baltos spalvos balansas Auto; natural; street lamp; outdoor; manual; regional custom
- Stiprinimo valdymas Auto
- Triukšmo mažinimas 3D NR
- Judesių aptikimas OFF/ON (4 areas, rectangular)
- Intereso sritis Yes (4 areas)
- Rūko šalinimas Yes
- AFSA Yes
- Vaizdo pasukimas 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
- Veidrodis Yes
- Privatumo maskavimas 4 areas
- Integruotas mikrofonas Yes
- Garso suspaudimas G.711a; G.711Mu; PCM; G.726; G.723
- Pavojaus įvykis No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
- Tinklo prievadas RJ-45 (10/100 Base-T)
- SDK ir API Yes
- Interneto protokolai IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
- Kibernetinis saugumas Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
- Suderinamumas ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
- Naudotojas/prievadas 20 (Total bandwidth: 64 M)
- Saugykla FTP; SFTP; Micro SD card (support max. 256 G); NAS
- Naršyklė IE:IE11ChromeFirefox
- Valdymo programinė įranga Smart PSS; DSS; DMSS
- Mobilioji programa iOS; Android
- Sertifikatai CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
- Maitinimas 12 VDC/PoE (802.3af)
- Energijos naudojimas Basic: 4.3 W (12 VDC); 4.9 W (PoE)Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
- Darbo sąlygos (temperatūra) –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH)
- Sandėliavimo sąlygos temperatūra –40 °C to +60 °C (–40 °F to 140 °F)
- Apsauga IP67
- Korpusas Metal
- Produkto matmenys 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
- Svoris be įpakavimo 500 g (1.10 lb)
- Bendras svoris 770 g (1.70 lb)
